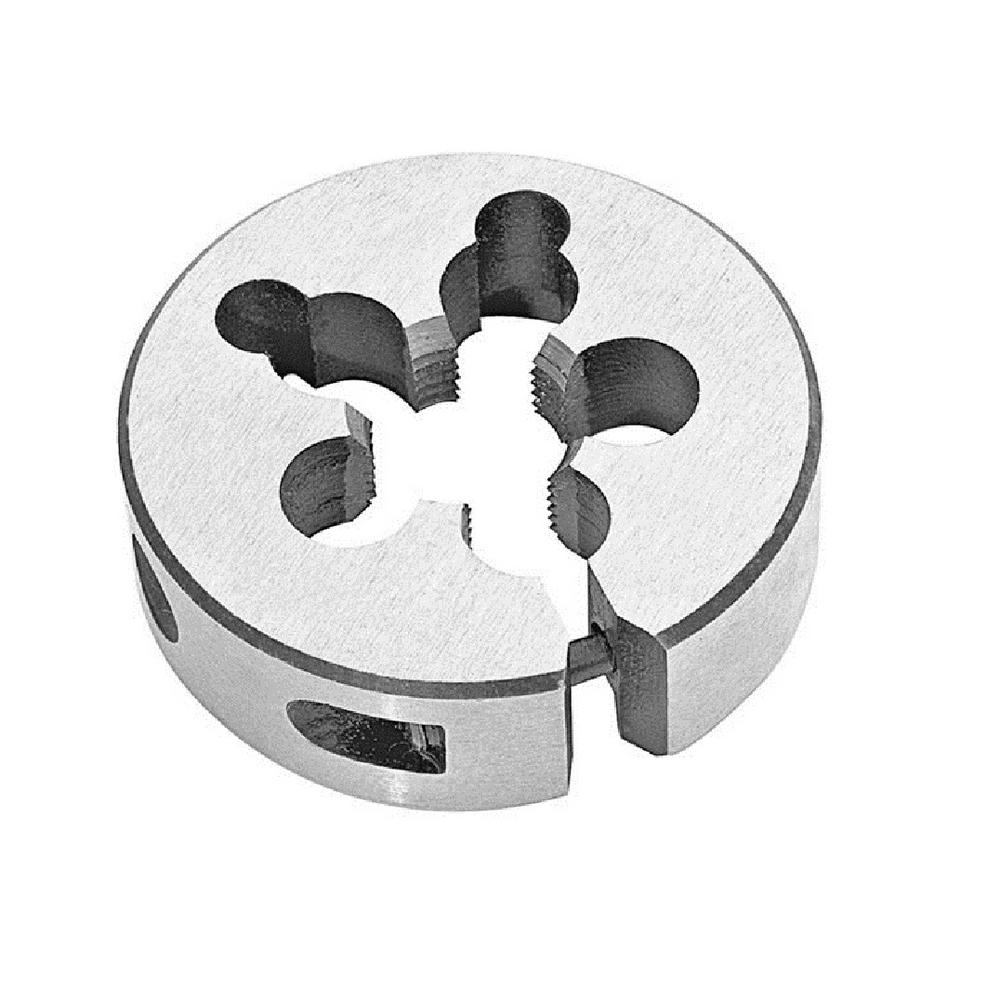

Drill America #10-28 X 1 OD High Speed Steel Round Adjustable Die DWT Series
Drill America #10-28 X 1' OD High Speed Steel Round Adjustable Die, DWT Series: Industrial & Scientific. Drill America #10-28 X 1" OD High Speed Steel Round Adjustable Die, DWT Series: Industrial & Scientific. High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance 。 Right-hand cut tools have a cutting action that engages when they are run in a clockwise direction 。 Round die is chamfered on both faces 。 Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together 。 The slot is beveled 。 DWT Series Qualtech High-Speed Steel round adjustable die is desired for improved wear life. Round Dies are chamfered on both faces. One side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the die is use in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder. 。 。 。
